Xtool X100 Pro2 can program a keyless backup key on a 2019 Ford Ranger / Explorer, bypass security and add a key very easily and efficiently.
Let’s go for the operation procedure, it is rather simple.

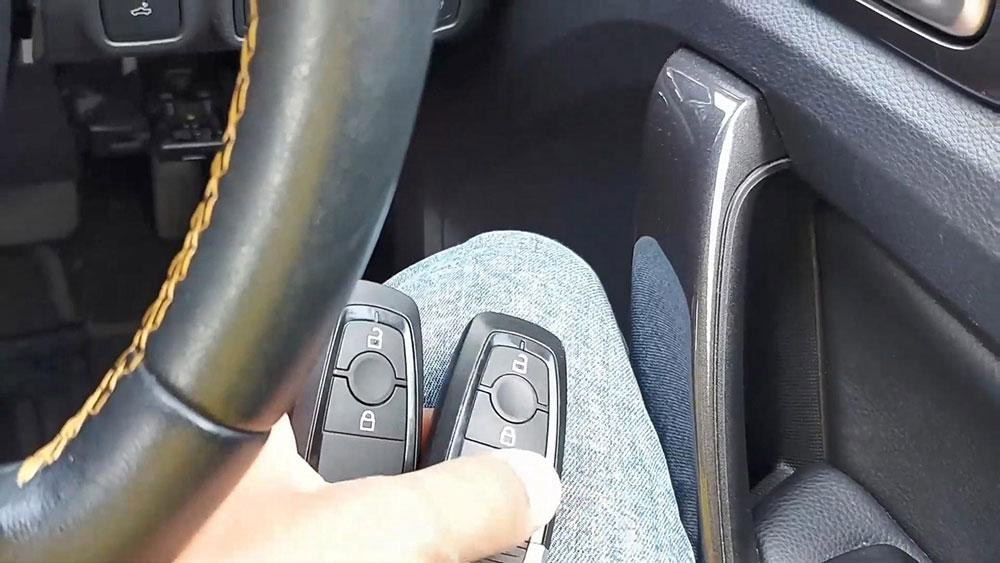

Okay, firstly prepare one new key remote. and then hook X100 pro2 up 2019 Ford Ranger Explorer via OBD.

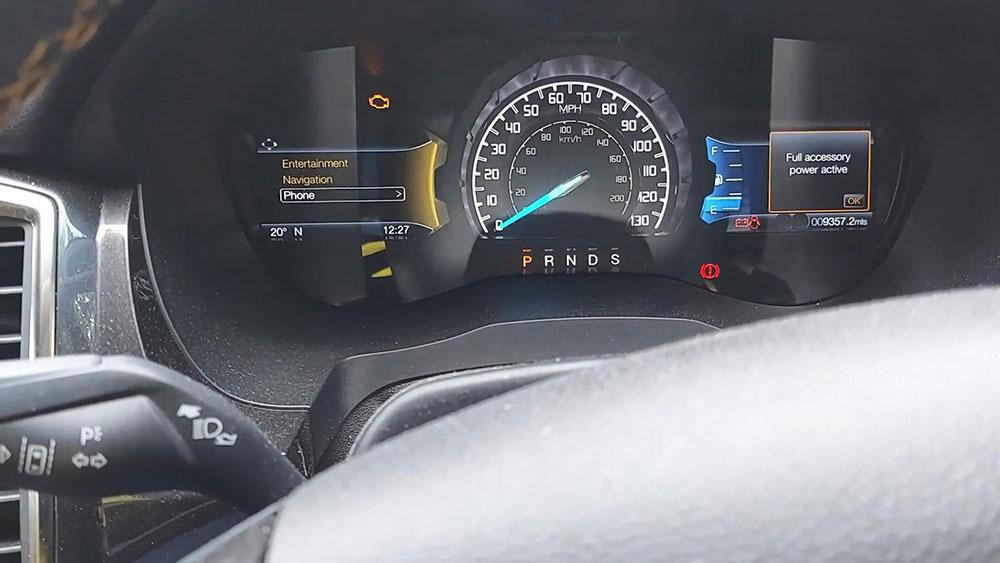

Press “Start /Stop” button to turn on ignition.
Start to operate on Xtool X100 pro2 by following the on-screen guide:
Select -> Immobilizer

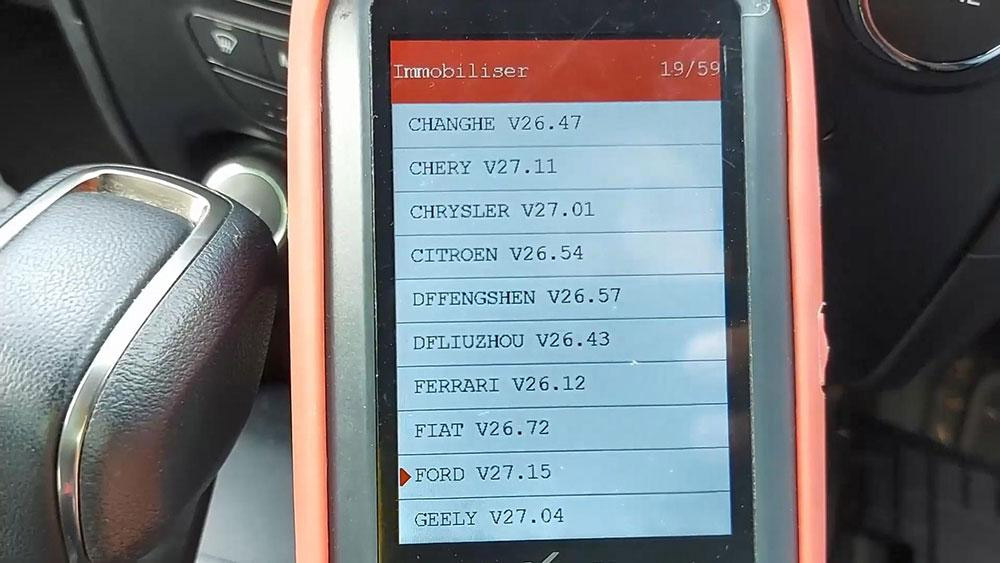

-> Ford V27.15 (the version will be newer and newer)
-> Select area (China Ford, North American Ford, AUS Ford)

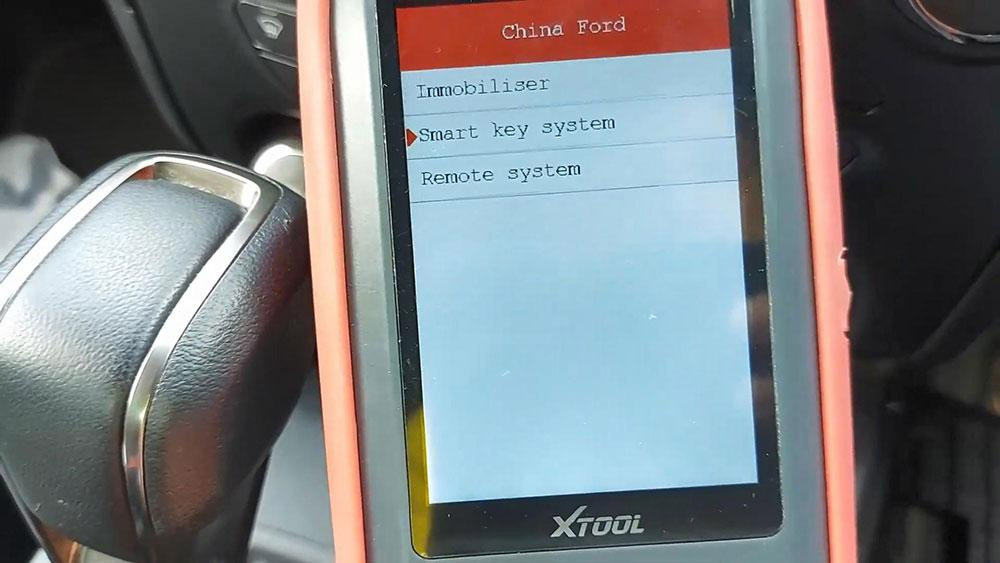

-> Smart Key system

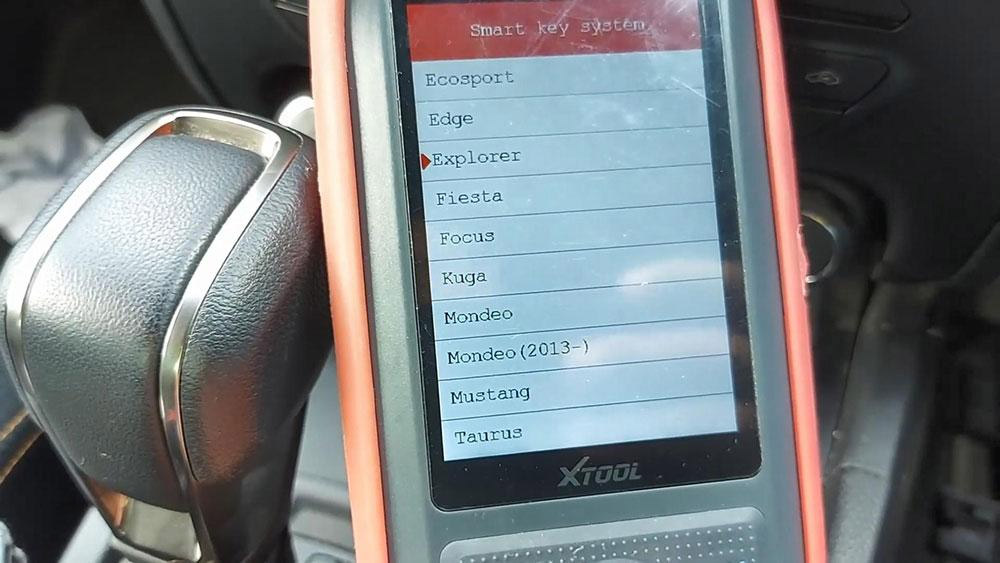

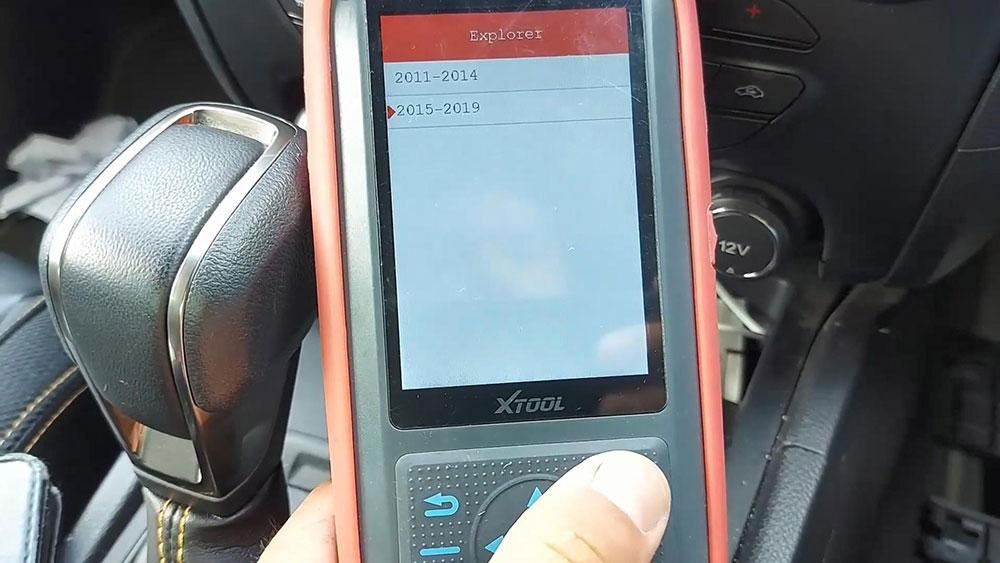

– > Explorer -> 2015 – 2019
-> Current number of keys:2
-> Add a key
-> Open the hazard warning lights
-> Please turn IG ON
-> Reading security code, please wait about 10 minutes.
-> The key to be programmed into the card slot ( slot in hand box or under cup holder next to the handbrake), press [OK] to continue.
-> Program success, if you want to program the next key, press “Yes” to continue, press “No” to return.
-> Back to select “Read number of keys”, it is 3 (it was 2).
-> Next is to test if the key remote works, perfect, it can work, it can start the car no mater it is in the car or out of the car.
-> Job is done!
I am very happy with Xtool X100 pro2, it programmed 2019 Ford Ranger Explorer greatly.
Good to know: If you have XTOOL X100 PRO3, it can also do the same job, the difference between PRO3 and PRO2 is that PRO3 has no mileage correction function.
Xtool X100 PRO3 and X100 pro2 any diffentens? Learn more here: Xtool X100 PRO3 vs.X100 pro2
