CGDI MB and VVDI MB can Program FBS4 keys

What users think of CGDI Prog programmer and VVDI MB tool regarding Mercedes FBS4 key programming.

Real opinions from users:

User 1:
the difference between CGDI and VVDI in FBS4 is as follows:
On one hand,
CGDI MB can read FBS4 keys and knows if its in a working status or key is damaged;
CGDI can read EIS FBS4 and knows if it working or not working; however, VVDI can not Detect FBS4 .

On the other hand,
CGDI never claimed that it can make calculation for FBS4 . Only Read to know the status. Out of the subject No one was Born knowing everything at one point we all asked for questions to know.

User 2:
Both CGDI and Vvdi MB are a great comprehensive solution comparing to what else is available out there.
In my opoinion they’re the two best for keys maybe along with Diagspeed but much far ahead than AVDI (for keys).

User 3:
with 655$ i earned 11000€ with cgdi !!! Well with vvdi always must to pay extra to make akl and one more thing ,, the server is very old on vvdi and sometimes have problems like cgdi !!!
So conclusion is only one !!! 655$ comparing with 2000$ its very big difference !!!

User 4:
Both tools are good ,but people don’t know how to use it at full capacity!

User 5:
i read somewhere that cgdi mb tool can make it and it is much cheaper tool from xhorse vvdi mb tool !!
Fbs4 it can read eis ID via obd and read key via IR but that’s it, can’t make a new key or calculate anything.

User 6:
The main difference between cgdi mb and vvdi mb is that, on old Mercedes, cgdi mb is able to OBD program a new key while you have to disassemble EIS to add a new key with vvdi mb tool. That is why you should have a cgdi programmer for mb.

With VVDI MB Tool, you should buy Vvdi prog too, because the are some eis and ecu’s that you cant do with MB Tool independently. For example some w210 eis or Sprinter 906. You should have both, VVDI MB Tool and VVDI prog. Or, if you have to buy some tool again, Simon Touch is the best, but its more expensive.

But if you have a CGDI MB, you have a chance to program a new key through OBD. All done with a tool. That’s the reason why I bought it.

Look here: CGDI MB key programmer read FBS4 key data successfully!

cgdi-mb-fbs4-key-1 cgdi-mb-fbs4-key-2
So there is no tool can do FBS4 key?
No.  With genuine xentry and daimler fbs server.  Makes FBS4 every day via OBD very fast and easy.

Diagspeed announced the dates of FBS4 solution. But not confirmed yet. The Diagspeed has the reputation of being the best in the Mercedes world to make keys, Reset ECU’s and trouble shoot problems that a normal scan tool can not.  It is worth to take a gamble.

CGDI BMW program FEM BDC successfully with 8-Foot Chip Adapter

This is my working desk, you can see one 8–Foot Chip Adapter is plugged to CGDI BMW which is plugged to a computer, also CGDI BMW is connected to a BMW FEM /BDC test Platform which is connected to FEM /BDC immobilizer module.

CGDI-BMW-program-FEM-BDC-1

Generally speaking, I need:

One 8-Foot Chip Adapter

One CGDI BMW

One BMW FEM /BDC test Platform (used to test if FEM/BDC immobilizer system is good or bad)

CGDI-BMW-program-FEM-BDC-2

One blank key

Since this tool is easy to use, what you need to do is read the on-screen message and follow it to do. so I didn’t take many photos here, but only two ones here.

Image 1: all are fine.

CGDI-BMW-program-FEM-BDC-3

Image 2: Read out password, ISN, Key Sync Code, DME ISN.
CGDI-BMW-program-FEM-BDC-4

How to use CG-PRO to program Jaguar Land rover KVM key

Post is on how to use CG Pro to program Jaguar Land rover KVM key perfectly in step by step procedure.

Part 1: Read out the data from smart computer and anti-theft computer.

Remove the smart computer and the IMMO box from the car.

CG-PRO-program-Jaguar-Land-rover-1

BCM immo box

CG-PRO-program-Jaguar-Land-rover-2

Image 2: Smart ECU RFA

Wiring according to the wiring diagram in the software, click on “Diagram” to follow.

CG-PRO-program-Jaguar-Land-rover-3

BCM wiring diagram in the CG Pro software.

CG-PRO-program-Jaguar-Land-rover-4

BCM physical wiring

CG-PRO-program-Jaguar-Land-rover-5

Land Rover RFA 2m53J 9S12XET256 wiring diagram in the CG Pro 9S12 software.

CG-PRO-program-Jaguar-Land-rover-6

Land Rover RFA smart ECU physical wiring:

You need not connect the CLK line first, if you are prompted to decrypt when reading, then connect the CLK line according to the software wiring diagram.

CG-PRO-program-Jaguar-Land-rover-7

Choose BCM or RFA module, read and save the data.

CG-PRO-program-Jaguar-Land-rover-9     CG-PRO-program-Jaguar-Land-rover–09

Note: Do not unplug the wiring immediately after the data is read out successfully, later you will write key and then rewrite data.

Part 2: Load the data into CG Pro software to program key

Click on “Key” – ” Jaguar / Land Rover” – Model [KVM – XEP100 (BCM) for example], then click on “Key Function” to enter the key programming menu incl. load KVM DFLASH, load KVM EEPROM, Load BCM DFLASH, Read key, Write key etc.

CG-PRO-program-Jaguar-Land-rover-11
CG-PRO-program-Jaguar-Land-rover-10

Menu options:

Step 1: Load KVM DFLASH

Step 2: Load KVM EEPROM

This function is for emergency start (optional option). If you need to operate this option, please read out BCM immo data and meanwhile tick on this option when key is programming, then load BCM data.

Step 3: Place a blank key into the CG Pro Key Programmer, click on “Read key” button.

***Can read key ID and check if the key is placed correctly.

Step 4: Select key position and then click on “Write key” button.

CG-PRO-program-Jaguar-Land-rover-12

Please save the data in the order of DFLASH,EEPROM,BCM.

Part 3: Rewrite the data generated after key programming.

CG-PRO-program-Jaguar-Land-rover-13

1.Back to the main menu where you read out the data just now.

2.Open the corresponding data saved after the key is wrote.

3.Write data after connecting the computer.

Done!

Now, you can unplug the cables from the computer and CG Pro, then reinstall the KVM module back to the car.And for more CGDI Programmer,you can check here:CGDI Programmer

How to Use CGDI MB Program Keys for Benz W212 All Key Lost

CGDI MB Programmer is one of the best Benz key programmer,it can program Benz key faster than other devices.Here OBD2TOOL want to share this CGDI MB programmer test report on all keys lost programming for Mercedes Benz W212.

Connect CGDI MB Prog to W212 OBD port,run software and select “EIS”–>”Read EIS Data”

CGDI-MB-Programming-for-Benz-W212-1

Select “Compute Password”–>”Copy key without key”,and it mean all key lost programming
CGDI-MB-Programming-for-Benz-W212-2

Then click “Collect Data”

CGDI-MB-Programming-for-Benz-W212-3

Follow the instruction to insert the simulation key into the EIS in 30 seconds…
CGDI-MB-Programming-for-Benz-W212-4

CGDI-MB-Programming-for-Benz-W212-5

Now it starting collecting data,it will take a long time,please don’t disconnect the device

CGDI-MB-Programming-for-Benz-W212-6

CGDI-MB-Programming-for-Benz-W212-7

After the collecting progress completing,save the file with the default name.

CGDI-MB-Programming-for-Benz-W212-8

It prompt “Save the file successfully.Please upload the data to calculate password”
CGDI-MB-Programming-for-Benz-W212-9

Now,click “Upload Data” to upload the data file you save just now

CGDI-MB-Programming-for-Benz-W212-10

Upload data successfully,please click the [Query Result] button to query

CGDI-MB-Programming-for-Benz-W212-11

Click “Query Result”

CGDI-MB-Programming-for-Benz-W212-12

Calculate password successfully

CGDI-MB-Programming-for-Benz-W212-13

Click “Copy” button to copy the password
CGDI-MB-Programming-for-Benz-W212-14

Select “EIS” menu,then click ”Paste” to paste key password

CGDI-MB-Programming-for-Benz-W212-15

Save EIS data with default file name

CGDI-MB-Programming-for-Benz-W212-16
Select “Generate EE”–>click “Load EIS File” to check EIS data information

CGDI-MB-Programming-for-Benz-W212-17

Then click “Generate Key File”

CGDI-MB-Programming-for-Benz-W212-18

It prompt you “The key file was generated successfully”

CGDI-MB-Programming-for-Benz-W212-19

Now select “Read/Write Key”

CGDI-MB-Programming-for-Benz-W212-20

Insert the new key into the CGDI MB automotive key programmer

CGDI-MB-Programming-for-Benz-W212-21

Tick “Infrared”,then click “Read Key/Chip”
CGDI-MB-Programming-for-Benz-W212-22

Click “Reset” button to erase key

CGDI-MB-Programming-for-Benz-W212-23

Click “Open/Write” button

Please Note:Smart key please choose 41 format,common key and BE key please choose 51 format!When writing the original key,please make sure that it is wiped by the Auto Key Programmer CGMB,otherwise the write will fail!

Click “OK” to continue

CGDI-MB-Programming-for-Benz-W212-24

Now select a unused key file
CGDI-MB-Programming-for-Benz-W212-25

Write success
CGDI-MB-Programming-for-Benz-W212-26

Now you can click “Read EIS Data” again to check the position key 2 is used,and if your key work correctly,it mean your programming is successful.

CGDI-MB-Programming-for-Benz-W212-27

Done!

35160WT adapter for CG Pro 9S12

35160WT adapter for CG Pro 9S12 features: For the 35160T chip design that cannot be erased, it can directly repair the original vehicle red dot and directly use the original car chip. This function is the first in the world.

35160WT adapter for CG Pro 9S12 for sale now
Save 18USD after the sale time expires

CG-Pro-1
CG-Pro-2
CG-Pro-3

CG-Pro V2.0.0.0 update related 35160WT adapter

(2018.09.30)

1.Added support chip
ST 35160WT (Must use a dedicated 35160WT adapter)
Microchip PIC18F6520
Microchip PIC18F6720
Microchip PIC18F8520
Microchip PIC18F8620
Microchip PIC18F8720
Microchip PIC12F635
Microchip PIC12F683
Microchip PIC16F631
Microchip PIC16F636
Microchip PIC16F639
Microchip PIC16F677
Microchip PIC16F684
Microchip PIC16F685
Microchip PIC16F687
Microchip PIC16F688
Microchip PIC16F689
Microchip PIC16F690

2.Added Dashboard
BMW 35080 V5 (35160WT) (Must use a dedicated 35160WT adapter)

3.Added ECU
Delphi MT22 MT60 (PFLASH)
Delphi MT22.1.1-2M53J (PFLASH)

4.Added user guide function
Now, after the program is installed first opened, it will enter the basic functions page guide to help users quickly understand the software.

5.Software structure optimization
Operation interface adjustment to improve functional clarity. Reduce resource consumption and improve operational stability.

www.obd2tool.com

Lonsdor K518 K518ISE Car Key Programmer FAQ

londer-k518ise
FAQ Lonsdor K518 key programmer hardware, adapter, car list, function, update etc, keep updating…

Link to purchase item:
Q: Does Lonsdor key programmer support Spanish?

A: No, OBD2 key programmer Lonsdor K518 is the Chinese version. K518 supports English (K518ISE) and Thai (K518THA) language. One machine one language, cannot exchange within the machine.

Q: Does lonsodr k518ise key programmer need tokens?

A: No, it does not need token. It’s not a token tool.

Q: How to register the k518 machine?

A: For new user, click Registration, input user name(email), name(min 2 char), password(min 6 char), email verification code and click YES to complete registration(if interrupted after registration is done, you will go to the System update–Registered user to proceed). Then go to Activation confirmation to continue.

After confirming activation, it will enter into Setup password interface, please set 6-digit numbers as your startup password. Then after information verification by Lonsdor (5-30 minutes, you can check the progress by clicking “Refresh” ), you will required to re-enter the password to verify, when you get the notification that verification successful, the whole process before using the device is complete.

Q: Is it upgradeable and how to update?

A: Enable network connection, the system will automatically update to the latest version.

Q: Without an Internet connection, all the functions work?

A: When you generate key for Toyota smart keys lost, you have to connect internet.

When you update, you need connect internet.

The other models work without internet connection.

Q: the Internet connection will work for 1 year? And then users need to buy again the option?

A: update by internet connection for free lifetime

Only the option that our engineer pay too much energy and cost to develop, that will charge again, so far all update are free.

Q: The SKE-LT smart key emulator is used once?

A: No, these SKE-LT smart key emulator can be used for many times. Once you generate key success, turn on the switch on the emulator unit for 3 times, data will be automatically erased.

(Note: If you failed to program key with the emulator, you properly do not clear the data restored.)

Q: KPROG is not for all cars?

A: used to program MCU and EEPROM on ECU circuit board.

Q: Will it read pin code on US sold Hyundai and kia smart system?

A: K518 can work on Hyundai and kia smart system with 47, 8A chip. For 46 chip, you have to collect the copy password first then calculate the pin code.

Q: Will K518ISE program 2017 Ford Escape smart key?

A: 2017 Ford Escape smart key works on 49 chip.

Q: Did you have to do CEM′s and KVM′s dismantling and reading first if want to program Volvo V40 smart key?

A: Yes. Need to remove CEM and KVM to read first.

Q: Will k518 work on 2007 dodge ram?

A: Lonsdor K518ISE supports Dodge RAM1500 and Journey models only at present.

Q: Can i program BMW CAS3+ smart key when all keys have lost?

A: Sorry, Lonsdor K518 cannot program CAS3+ all keys lost.

Q: Will K518 read ISN code from BMW CAS system?

A: No, it cannot. You can choose to use CGDI Prog BMW or other tools.

Q: Will K518 program Nissan proximity key?

A: Nissan prox works great.

Q: Will Lonsdor K518ISE add a key on Mitsubishi ASX 2013?

A: Yes, it will.

Q: Will it program Cadillac ESCALADE year 2017 smart key?

A: Yes, we have tested and worked great.

Q: Can I read pin code and program key for PSA cars?

A: Yes, used on some PSA cars (2003 to 2008 years) to read pin and program keys all ok.

Q: I wonder will the Lonsdor K518 from www.obd2tool.com work on VAG 4th IMMO when all keys lost?

A: Works on a part of Vag 2010- all keys lost, supports 4th Immo system 202AD key as long as the 4th IMMO data can be read out successfully by 202AD.

Q: Hi, will k518 program BMW FEM system when all keys have lost?

A: Yes, it will.

Q: Will I need to remove FEM/BDC , if I need to work on this function ?

A: Don’t need to remove FEM/BDC.

Q: Will K518 program Toyota H type key all keys lost?

A: Sorry, it cannot program H chip all keys lost.

Q: Does Lonsdor work on 2017 CAMRY smart key with DST128 chip when all keys have lost?

A: Sorry, Lonsdor K518ISE cannot program Toyota DST128 all keys lost. But it will program DST40, DST80 and 8Achip all keys lost by OBD if using SKE-LT Smart Key emulator.

Lonsdor K518ISE Program Renault Scenic III 2015 Smart Card

New test feedback: Lonsdor K518ISE Renault Scenic year 2015 smart key card programming success.

4-1

Select Immobilizer->Renault->Select from vehicle->Megane Scenic-> Scenic III (2009-2015)

4-2

Turn ignition to ON position

Read VIN, detect key number and ID

4-3

4-4

4-5

Insert original key card into key slot

4-6

Follow system prompt to program key

4-7

4-8

Program next key.

Insert new key card into slot and follow Auto Key Programmer Lonsdor K518ISE prompts

4-9

Success.

Test the new smart key.

4-10

Done.



www.obd2tool.com

How to active JLR-IMMO OBD Key Programmer

Lonsdor JLR-IMMO New users are required to register, bind and activate the device for the first use. After activation , you can use the device functions.

Users who’ve bound Lonsdor product, can directly enter Email and password to login, no need to register again.

1 Register for website

*    Please enter the website: http://u.lonsdor.com/jlrimmo/login(see below pic)

11-1

*    Click【Register】, it skips to below interface.

11-2

*    According to prompts in frame box, input related info., click【Submit】to register( see below pic).

Input name: fill in user name

Set password: input min 6-digit login password

Confirm password: reconfirm the login password

Input Email: fill in registered email address

Input verification code: click【Get verification code】, then input the correct code.

11-3

2 Website login

*    After register successful, it skips to login interface.
*    Or you can enter the website: http://u.lonsdor.com/jlrimmo/login

According to prompts to input Email, password and verification code, click 【Submit】to login.

11-4

When login succeeds, it skips to “Bind account” interface.

11-5

3 Bind device

According to prompts to input correct info., click【Submit】to bind device.

Device No.: shown on boot screen and back of the device (PSN).

Registration code: after device boot, click A (Enter), there is instruction on activation operation, registration code will show.

Please set device password: 6-digit number

Please confirm device password: confirm the password

11-6

4 Activate device

*    Enter website: http://u.lonsdor.com,(see below pic)

11-7
Users who’ve bound Lonsdor product before, can directly enter Email and password to login, no need to register on the obd2tool.com. Users who doesn’t bind Lonsdor product, complete website registration, then input the registered Email and password to login.

*    After login, the screen shows bound device, see below pic.

11-8

*    Click JLR, see below pic.

11-9

*    Click【Get activation code】, the default in input box is bound device No., see below pic.

11-10

*    Click【Submit】, get activation code, see below pic.

11-11

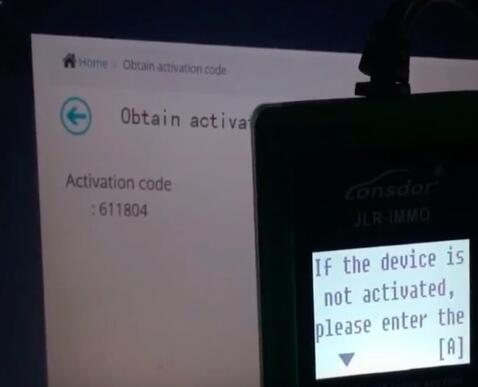

*    Input activation code to the Key Programming tool, press A(Enter), shown in below pic. Press A(Enter) once again, activation succeeds and enter function interface.

11-12
11-13

SEC-E9 Key Cutting Machine Test on Cutting Silca HU100 Key

SEC-E9 is a powerful key cutting machine,it not only support auto key cutting,but also can cut for house key.And there i show the guide on how to use SEC-E9 to cut Silca HU100 key.

Procedures:

Power on SEC-E9 machine,and press “Search” button.

4-1

Enter “HU100”,then press “Search” button,select “SILCA”

4-2

Select “HU100(1097)(8-8)”

Press menu button,and press “info” button to know the basic information.

This key is guided by “Tip”

Then close the window

4-3

Press “decode” to enter the decoding page

4-4

Click the image of three-terminal positioning and press “Round off”

4-5

Check if the original key can work well

4-6

Fix the original key on car key clamp

4-7

Please note the key should be fixed level.

4-8

4-9

Press “decode”,and click the picture of “Clean the groove from chips” to start decoding.

4-10

Take away the original key

Fix a HON66 key blank on car key clamp.

Please not the key blank should be fixed level

4-11

Click “cut” button to enter cutting page

4-12

Press “Speed” and “Normal resolution” button.

4-13

Click the image of three-terminal positioning

You can adjust the cutting depth,usually it is 1mm.

4-14

Press “Cut” button to start cutting.Please remember to close the safe gate.

4-15

Cutting…

4-16

Cutting is done.

Open the safe gate.Clean the clamp,and take out the new key.

4-17

Change the other side of the key blank on the car key clamp for cutting,click “cut” button and close the safe gate.
4-18

4-19

Cutting…

4-20

Cutting is done,open the safe gate and take out the new key by OBD II Scanner.

Try your new key if the new key works.

4-21
