How to Remove & Disassemble Instrument Cluster for Cadillac Escalade

It is necessary to remove dump chip from dashboard to perform mileage correction if you do not have special odometer correction device. So here i will show you guide on how to remove and disassemble instrument cluster for Cadillac Escalade 2006-2014.

All dashboard removal projects you can use this software to check: Dashboard Pro 6.4

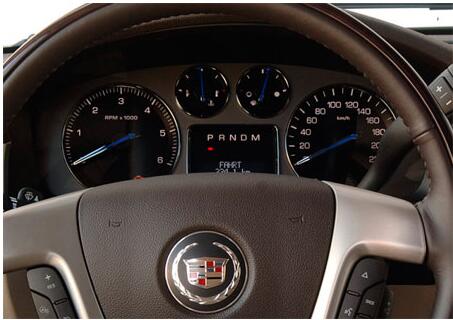

Remove the instrument cluster:

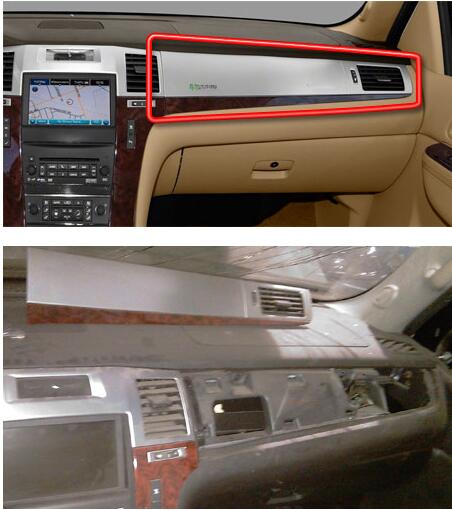

Remove right air duct(on clips)

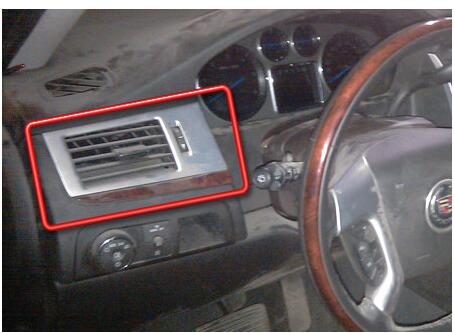

Remove left air duct (on clips)

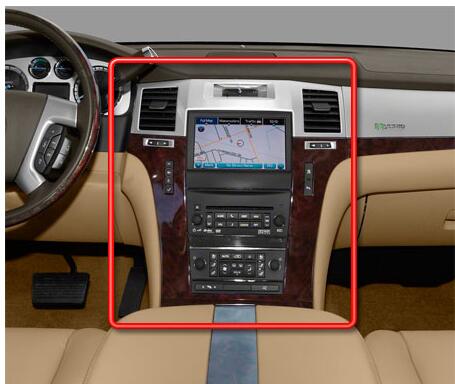

Remove trim center console,you can not completely remove and gently bend the upper edge of 5-6 cm(on clips)

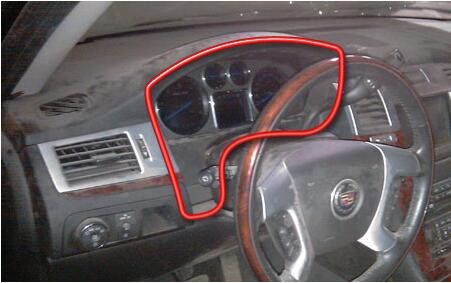

Remove the cover plate of the instrument cluster(on clips)

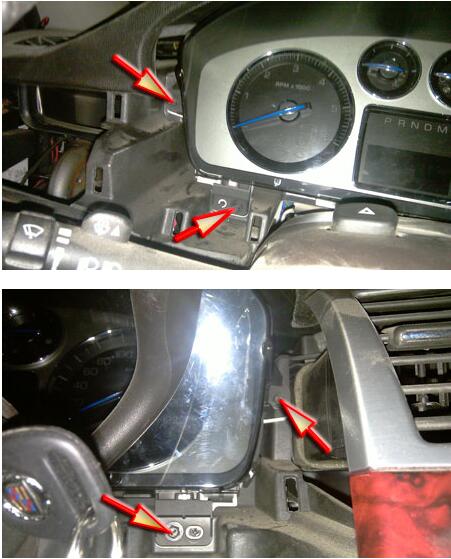

Remove the 4 screws

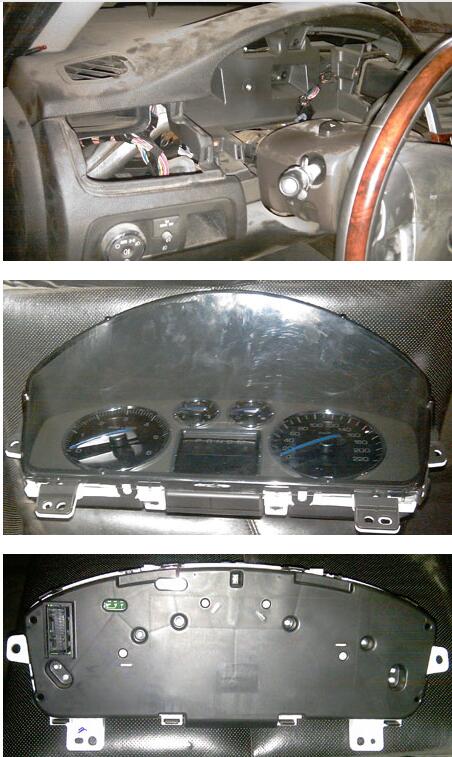

Remove the instrument cluster

Disassemble the instrument cluster

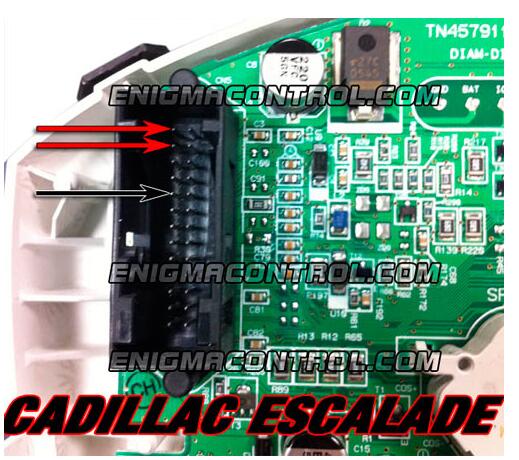

Connecting the instrument cluster

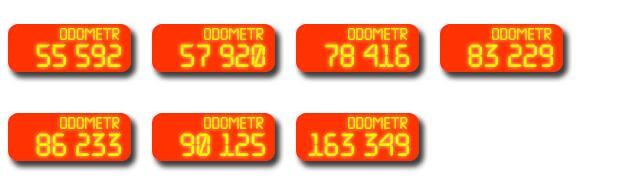

In the dump mileage stored in miles,the processor itself translates miles to kilometers.

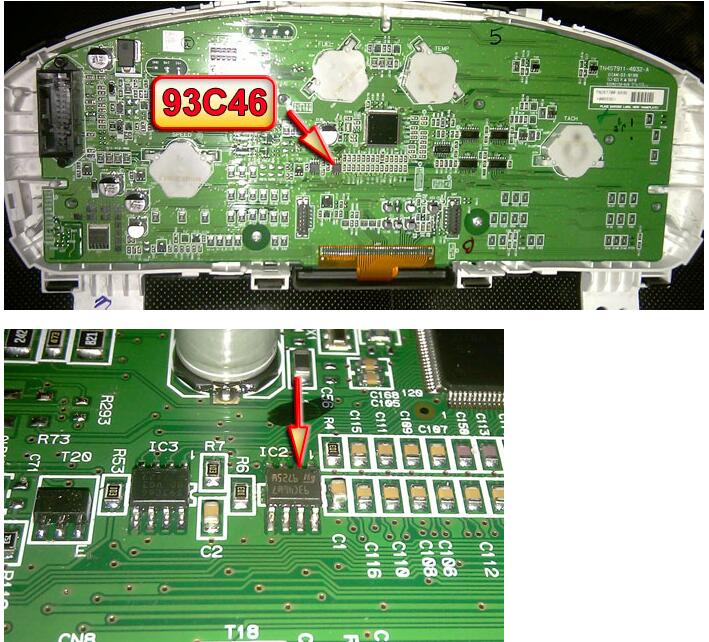

Memory dump

Save original dump
